Description

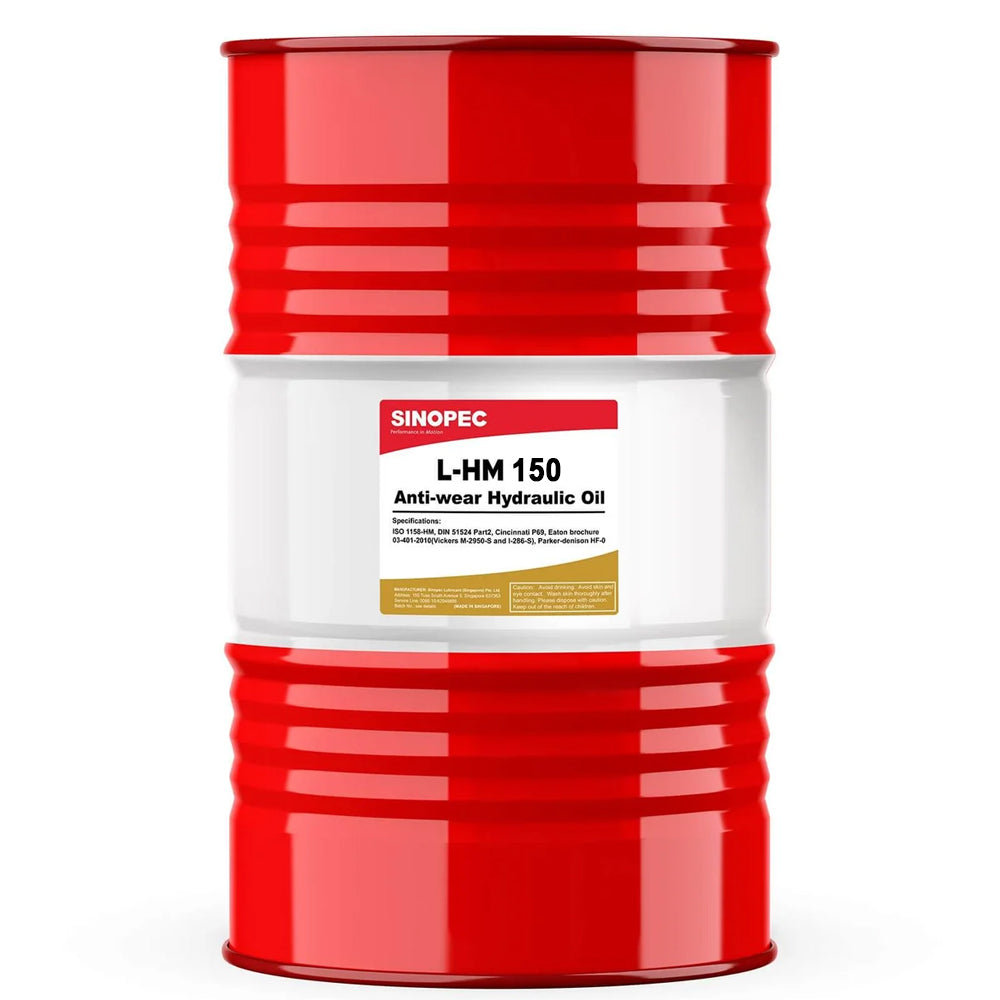

Sinopec L-HM 150 Antiwear Hydraulic Oil is a premium quality antiwear lubricant blended using selected and carefully refined high-quality mineral oils, combined with a multifunctional additive system, this hydraulic oil has been designed to meet the requirements of major hydraulic pump manufacturers, and its applications include hydraulic systems used in industrial and marine applications as well as in mobile machinery, specifically formulated for machines and equipment requiring an ISO VG 150, ISO 150 or AW 150 hydraulic oil.
Pack Size: 55 Gallon Drum (200L Volume), Grade: ISO 150, SAE 40
Features & Benefits
Sinopec L-HM 150 Antiwear Hydraulic Oil is suitable for use in:
- Hydraulic applications in a wide variety of industrial, marine and mobile equipment where ISO VG 150 hydraulic fluid or AW150 hydraulic oil is recommended.
- Vane and gear pumps operating under high loads, as recommended by pump manufacturers.
- Severe service hydraulic systems, employing axial and radial piston pumps, as recommended by pump manufacturers.
Features & Benefits
- High flash point (270°C) and fire point (330°C) make the fluid resistant to fire,
- High-quality base oils combined with multi-functional additive technology provide outstanding anti-wear properties, rust protection, low varnish and deposit formation, good demulsibility, oxidation resistance, good anti-foam properties and fast air release properties, to protect and extend the life of hydraulic pumps and systems.
- Good hydrolytic stability and filter-ability, ensure optimum product life and performance, and prevent filter blocking.
- The wide selection of viscosity grades ensures that the optimum viscosity can be used for any hydraulic system operating temperature.
- Fully compatible with common seal materials usually found in hydraulic systems, to extend seal life and prevent fluid leakage.
Specifications
Sinopec L-HM 150 Antiwear Hydraulic Oil Typical Data Specifications
| ISO viscosity grade (VG) |
150
|
|
Kinematic viscosity, ASTM D 445
cSt @ 40℃
cSt @ 100℃
|
150.6
15.28
|
| Viscosity index, ASTM D 2270 |
99 |
| Air release at 50℃, mins, ASTM D 3427 |
--
|
| Foaming characteristics, sequences 1, 2 and 3, ASTM D 892 |
10/0
10/0
10/0
|
| Neutralisation number, mg KOH/g, ASTM D 974 |
0.69 |
|
Rust prevention, ASTM D 665
distilled water
synthetic sea water
|
pass
pass |
| Copper corrosion, 3 hours @ 100℃, ASTM D 130 |
1b |
| Water separability, ASTM D 2711 |
15(82℃) |
| Pour point, ℃, ASTM D 97 |
-12 |
Sinopec Antiwear Hydraulic Oil meets or exceeds the performance requirements of the following industry specifications:
| DIN |
51524 Pt 2 |
| GB |
11118.1 -2011(L-HM, High Pressure) |
| ISO |
11158 (L-HM) |
Cross Reference
- Phillips 66 Megaflow AW Hydraulic Oil 150
- Mobil Hydraulic AW 150
- Mobil DTE Hydraulic Oil Heavy
- Mobil DTE 29
- Shell AW Hydraulic 150
- Shell Tellus MX 150
- Shell Tellus M 150
- Shell Tellus 150
- Shell Tellus 150
- Shell Tellus T 150
- Shell Tellus S 150
- Chevron AW Hydraulic HD 150
- Chevron AW Machine Oil 150
- Chevron AW Machine Oil 150
- Chevron Rando HD 150
- Chevron Rykon Oil AW 150
- Chevron Rykon Oil 10
- Concoco Super Hydraulic 150
- Phillips 66 Megaflow AW Hydraulic Oil 150
- Also referred to as: AW 150 Hydraulic Oil, AW 150 Hydraulic Fluid, ISO VG 150 Hydraulic Oil, ISO VG 150 Hydraulic Fluid, ISO 150 Hydraulic Oil, ISO 150 Hydraulic Fluid, Grade 150 Hydraulic Oil, Grade 150 Hydraulic Fluid
